Bailey construction trailers are engineered to perform day-in-day-out across the toughest site conditions.

Strong, reliable trailers for hauling aggregates, transporting machinery and supporting on-site operations. Whether you’re moving stone, topsoil, or equipment, our range of heavy-duty construction trailers offers an all-round fleet solution.

When investing in a Bailey trailer, durability is part of our promise. Built to withstand demanding workloads and challenging environments, a Bailey trailer is engineered for the long haul.

But as with any hardworking piece of equipment, even the toughest machinery will eventually require replacement parts.

The difference lies in choosing components that match the original standard and that’s where genuine Bailey parts prove their worth.

Blind Spots

Appropriately trained and experienced personnel recognise the dangers when reversing, less experienced operators may not. When reversing, even small trailers can have significant blind spots where visibility is reduced both behind and to the sides of them.

Failure to spot an obstruction can endanger the life of personnel or damage the trailer. Consider the use of audible reverse warning aids and additional lighting especially in low light conditions.

Always check behind when reversing to ensure the area is clear of obstructions and personnel. If in any doubt employ the services of a banksman to assist you with your manoeuvre.

Jack knife

Avoid jack knifes when reversing as this will inevitably lead to contact between the trailer and the towing vehicle, resulting in damage to both the towing vehicles tyres and the trailer drawbar.

Bring the towing vehicle and trailer to a stop. Always position the towing vehicle and trailer in a straight-ahead position wherever possible. Check that there are no obstructions or persons in the tipping area. For trailers with steering axles ensure the wheels are in the straight-ahead position

Select the towing vehicles tipping control and raise the trailer body, control the speed to suit the type of material being carried. If an independently operated tailgate is fitted operate this from the towing vehicle as the body is raised. Slowly drive forward to ensure the loaded material is fully discharged.

Note: the tailgate cannot be raised until the lifting of the body has commenced. Stop the towing vehicle and fully lower the body and close the tailgate before driving off.

Always lower the trailer body when leaving the trailer. To eliminate damage to the rear door, keep the full load pressure off the rear door when tipping.

Trailers fitted with a grain chute should only be partly tipped when unloading and the grain chute is in operation.



Hydraulic tailgate operation

Ensure the tailgate hydraulic connection is made to the towing vehicle. Check that there are no obstructions or persons in the tailgate danger zone before operating the tailgate.

Operate the relevant control to raise the tailgate and to lower it. All trailers equipped with hydraulic tailgates incorporate a safety system which requires the trailer to commence tipping before the tailgate can be raised. When lowering the trailer ensure the tailgate is fully closed before the trailer body is fully lowered.

We’re delighted to announce an exciting new upgrade to our popular People Carrier.

From February 2026, our People Carrier will feature high-backed vinyl seats as standard. These new seats provide support at shoulder height and offer a more supportive ride for passengers. This is particularly important when travelling over fields, uneven ground, or off-road routes.

What’s New?

• High-backed vinyl seats for superior safety, comfort and support
• 3 point seat belts for enhanced safety
• Extra passenger room – 30 – 46 seat options
• Optional wheelchair access by removing the rear two seats during the order stage
• Improved ride experience – especially noticeable on rough or uneven terrain
• Rear access point – prevents contact with the owing vehicle’s wheels

Safety and Accessibility Built-In

To prevent passengers coming into contact with the wheels of the towing vehicle, the access position to the trailer is situated at the rear behind the wheels. At the time of ordering, customers will have the option to remove the rear two seats to create space for wheelchair access, ensuring the vehicle continues to serve a wide range of transport needs in inclusive and practical ways.

Coming Soon

This upgrade will be available on new orders starting February 2026. Whether you’re running farm tours, shuttle services, or event transport, this new seating system will elevate your passenger experience to a whole new level.

“We’re very happy with our new design,” said Head of Design, Richard Bailey.
“We took the time to research the best seating and access options that would offer better safety and comfort. The result is a significant upgrade in passenger experience, we expect the new seats to be very popular with our customers and their passengers alike.”

About the Bailey People Carrier

Our People Carrier is the ideal solution for tours around farms, farm parks, and the transportation of guests at outdoor events. Built for versatility and durability, it’s available in four lengths to suit a range of capacities and layouts: 5575mm – 22 seats, 7275mm – 30 seats, 8975mm – 38 seats and 10675mm – 46 seats.

Standard features include sprung suspension for a smoother ride, hydraulic brakes for dependable stopping power, and tandem axles on 300/80×15.3 wheel assemblies, ensuring stability and performance across varied terrain.

We’re pleased to announce an update to our swan neck pipe holder, delivering practical improvements to make your working day more efficient.

What’s new?

Increased Pipe Capacity

The newly updated open pipe holder design now allows for multiple pipes to be easily stowed on the swan neck, eliminating the need for the previous tube design, which could only accommodate up to five pipes. This change removes the need for a double-tube setup when carrying more than five pipes by simplifying storage.

Improved Operator Accessibility
We’ve also relocated the ‘Push to Shunt’ button from the chassis. Previously it required crouching underneath the trailer. The button is now positioned on the swan neck holder itself. This makes activation quicker, easier, and safer for the operator.

These enhancements are proof that even the smallest design improvements can make a big impact on productivity and comfort in the field.

“We’d had enough of crouching under the trailer to hit the ‘push to shunt’ button. So, we stuck it up where it should’ve been all along. It’s a small tweak, but it saves time, saves effort and just makes the whole thing less of a faff.”
Michael Bailey, Managing Director

About the Bailey Swan Neck Pipe Holder

Known as the ‘swan neck’ thanks to its distinctive curved design, this innovative pipe holder raises all hydraulic pipes, air pipes, and electric cables safely away from the rear tractor link arms. It’s a simple but smart solution that helps protect vital connections, reduce wear and keep everything safe, tidy and secure during operation.

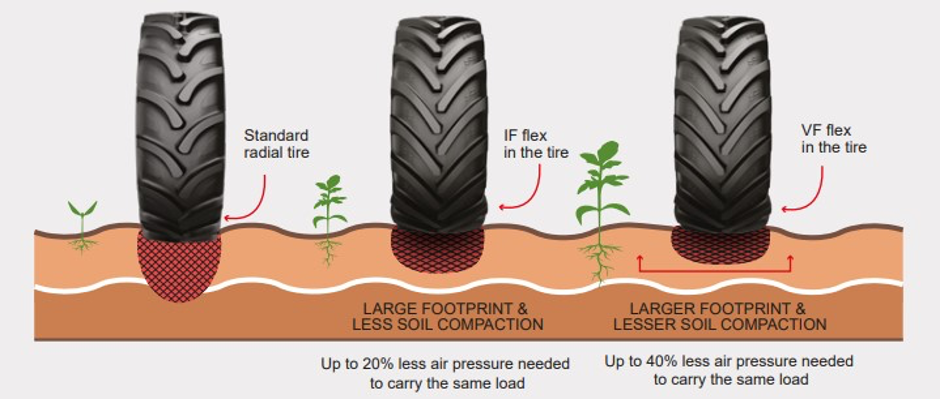

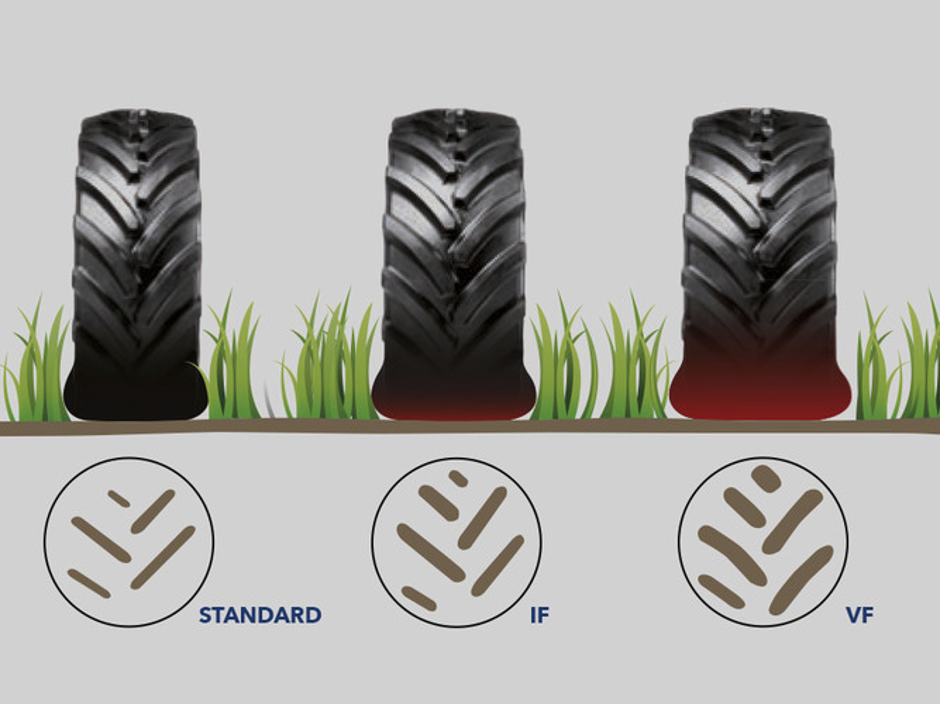

Agricultural trailer tyres face tough demands: varied terrains, loads, and speeds. VF (Very High Flexion) tyres are a cutting-edge solution designed to meet these challenges with increased load capacity, lower inflation pressures, and reduced soil compaction. They are particularly suited for today’s larger, heavier and more powerful farm equipment.

VF (Very High Flexion) tyres are advanced agricultural tyres designed to flex more than conventional radial tyres. A VF tyre will carry the same load at the same speed as a conventional radial tyre, but at 40% lower inflation pressure.

VF tyres:

• Feature a flexible yet durable carcass
• Increase footprint size
• Reduce soil compaction
• Improve traction and fuel efficiency

Key Benefits of VF Tyres

1. Increased Load Capacity

• Carry up to 40% more load than standard radial tyres
• Suited for larger trailers, reducing the number of trips required

2. Lower Inflation Pressure

• Operate at significantly lower pressures (as low as 0.6 bar) without sacrificing performance
• Lower pressure = lower soil compaction

3. Reduced Soil Compaction

• Larger, oval-shaped footprint distributes weight more evenly
• Less soil disturbance and better preservation of structure
• Long-term yield protection due to reduced subsoil damage

4. Enhanced Traction

• Advanced lug design increases ground contact
• More lugs working simultaneously = greater tractive force
• Less slippage and better self-cleaning

5. Lower Fuel Consumption

• Reduced rolling resistance leads to lower fuel use
• Fewer transport cycles thanks to larger loads

6. Improved Soil Health and Yield

• Better water infiltration and root development
• Long-term improvements in soil fertility and productivity

7. Cost Efficiency

• Reduced trips, lower fuel costs, and higher yields contribute to overall operational savings

Supporting technology: TPMS / CTIS

VF tyres perform best when used in conjunction with a CTIS (Central Tyre Inflation System), allowing:

• Real-time pressure adjustments from the cab
• Optimised performance across field and road
• Time-saving and enhanced tyre lifespan

Technical enhancements in VF tyres

• Stronger sidewalls for greater flexion and durability
• Steel belts (in premium brands) provide:
  • Uniform footprint
  • Puncture and stubble resistance
  • Improved traction and lower fuel use
• High-tech rubber compounds for heat and wear resistance

Summary: Why choose VF tyres?

VF tyres are a smart investment for modern agriculture. They:

• Increase productivity through higher load capacity
• Protect soil and increase yields by operating at lower pressure
• Save time and fuel
• Provide advanced traction and durability

For farmers looking to enhance operational efficiency and sustainability, VF tyres – especially when used with CTIS – offer a significant advantage over conventional radial tyres.

For more information speak to your Bailey dealer.

When a 40 or 50 km/h tractor is pulling a trailer, it’s vital that the trailer’s braking system can cope with the speed plus weight-imposed loads and still be durable and reliable in-service. Therefore, selecting the correct ‘foundation’ brake type and size is a critical first step.

What is the foundation brake?

The brake drum and shoe form the ‘foundation’ of the trailer’s braking system. Brake capacity depends on drum diameter and shoe width. Higher load capacity axles and/or those used at higher speeds are fitted with larger foundation brakes. The wrong choice for your intended speed and maximum load could prove costly.

What is an ‘Agricultural’ specification brake?

Agricultural foundation brakes are fitted to lower capacity axles and are usually smaller, for example: ø300 x 60mm or ø400 x 80mm. Because they use ‘flat’-type operating cams which don’t provide very progressive brake control, they are unsuitable for use above speeds of 40 km/h. Typically, agricultural brakes are fitted to smaller trailers.

What is a ‘Commercial’ brake?

Commercial foundation brakes generally use larger drums and shoes, for example: ø420 x ø180, ø420 x ø220 and ø310 x ø190 (on low loaders), which are designed to withstand higher braking loads. However, their most important feature is an ‘S’-shape operating cam which provides more progressive brake control. The size of the drum is an indication of how these brakes can dissipate the heat produced during higher-speed braking. Depending on the size of the air chamber or brake ram fitted, commercial axles/brakes will enable the trailer to achieve 50% braking efficiency when fully laden. Commercial brakes are the perfect match for a modern tractor.

Drawing courtesy of Granning Axles and Suspensions

It wasn’t that long ago you’d only see a sheet over a trailer if rain was going to spoil the harvested crops.

Attitudes to uncovered loads have changed dramatically over recent times. Farmers delivering to mills are now expected to arrive with a covered load, or they can be turned away.

Whether farm or construction, uncovered loads are now regularly pulled over. Under the Road Traffic Act, it is important that bulk loads are not shed or blown onto public roads. However, legislation aside, surely it makes perfect sense to protect whatever is in the trailer and other road users?

Three routes to protecting your investment…

Hydraulic Side to Side sheeting System

Our Hydraulic Side to Side Sheet is designed to protect your crops in all kinds of weather. This sheet is stored neatly on either the near side or off side of the trailer and is operated from within the tractor, in line with the Grain Storage Health and Safety Regulations. This system is available on our range of TB, Root and Beeteaper trailers.

What our customers say

“The Hydraulic Rollover Sheet is very handy, it’s easy to deploy from the tractor cab, which makes it safer for operators.”
Giles Edwards, Edwards of Byton, Herefordshire

“The Contract Tipper is fitted with the Front to Back Sheet, it’s a really good option, works on the hydraulics, folds over in seconds.”
Steve Hill, S E Hill Ltd, Lincolnshire

“I’m very impressed with Bailey’s Hydraulic Rollover Sheeting system.”
Haig Hamilton, J Haig Hamilton, East Lothian

For further information on our sheeting systems click here ››

Safety Features

If the Red ‘Supply’ line breaks or disconnects (and there is pressure in the trailer reservoir), the Relay Emergency valve will apply the trailer brakes automatically (i.e. Failsafe operation). Always check this happens whenever the trailer is unhitched from the tractor.

If the tractor’s braking system fails (or the engine stalls), the driver can still apply the trailer brakes using the tractor’s Secondary brake control (either the foot brake, the Parking brake or an Emergency brake control).

Important Do’s and Don’ts
When coupling / uncoupling, to keep the trailer brakes applied for as long as possible, ALWAYS disconnect the Red line first (before the Yellow line) and re-connect it last.

ALWAYS apply the mechanical Parking Brake. Don’t rely on trailer air reservoir pressure to keep the brakes of an unhitched trailer applied.

NEVER connect both hydraulic and air brakes at the same time. Use either one system OR the other.

ALWAYS ensure the Shunt valve releases when the air brakes are next connected: otherwise, the trailer’s reservoir won’t refill and you will have no trailer brakes!
