ON SITE OR ON FARM…
Our Contract Tipper is the perfect solution for hauling either topsoil or stone. Additionally, when specified with the optional extension sides this trailer is ideal for hauling significant amounts of grain.
We build our Contract Tipper on a rugged, heavyduty RHS bottom chassis. The axles are mounted on tandem springs for stability over a variety of terrains. Further strength is gained from the reinforced sides and floor, which makes this trailer a stronger option when compared to conventional grain trailers.
ENQUIRE NOW
Ready to configure your Contract Tipper?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ CT17-CT28 Air brakes and load sensing
✓ Hydraulic door
✓ Hydraulic brakes
✓ Heavy-duty EN8 towing eye
✓ Parking brakes
✓ CT14-CT28 Metal mudguards with flaps
✓ Extra lights on rear door
✓ Heavy-duty floors and sides
✓ Front aggregate guard
✓ LED lights
✓ LED beacon
✓ Chromed rams
✓ Body prop
✓ Anti-chip paint on headboard
✓ Sprung drawbar CT14-CD28
✓ Colour coded pipes
SIZES / DIMENSIONS / TYRES
Model |
Capacity m3 |
LxWxH mm |
Loading height mm |
Tyres |
Axle(s) mm/stud |
Thickness (mm) |
Sprung d/bar |
CT 10 |
6.82 |
4000x2500x700 |
1775 |
435/50 R19.5 |
2x90/8 |
Floor 8 / Side 6 |
Option |
CT 12 |
7.90 |
4500x2500x800 |
2050 |
385/65 R22.5 |
2xcom/10 |
Floor 8 / Side 6 |
Option |
CT 14 |
10.6 |
5000x2500x900 |
2200 |
385/65 R22.5 |
2xcom/10 |
Floor 8 / Side 6 |
STD |
CT 17 |
12.9 |
5500x2500x1000 |
2300 |
385/65 R22.5 |
2xcom/10 |
Floor 10 / Side 8 |
STD |
CT 20 |
14.1 |
6000x2500x1000 |
2450 |
445/65 R22.5 |
2xcom/10 |
Floor 10 / Side 8 |
STD |
CT 24 |
16.6 |
6500x2500x1100 |
2550 |
445/65 R22.5 |
3xcom/10 |
Floor 10 / Side 8 |
STD |
CT 28 |
18.0 |
7000x2500x1100 |
2550 |
445/65 R22.5 |
3xcom/10 |
Floor 10 / Side 8 |
STD |
SHEETING SYSTEM
✓ Hydraulic Front to Back Sheet
DOORS
✓ Hydraulic Door with Integrated Barn Door
✓ Hydraulic Fold Down Door
✓ Barn Door
✓ Grain Chute
✓ Grain Sock
✓ Grain Sampler
LIGHTS
✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights and Mudflaps
✓ Extra Rear Lights
✓ High Visibility Safety Strips
TOWING EYES
✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye
SIDES AND FLOORS
✓ Extra Depth (75mm stages)
✓ Extra Thick Floor
✓ Extra Thick Sides
✓ Extension Sides
✓ Harder Wearing Flooring
GUARDS, BRAKES AND SUSPENSION
✓ Metal Mudguards with Flaps
✓ Steering Commercial Axle
✓ Front Rubber Mudflaps
✓ Sprung Drawbar
✓ Air Brakes and Load Sensing
✓ Auto Slack Adjusters
✓ ABS Brakes
✓ Hydraulic Brake Load Sensing
✓ Air Suspension
MISCELLANEOUS
✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank (Suspension and Axles)
✓ Greasing Bank (Hydraulic Door)
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Hinged Rear Draw Bar (Hydraulic and Air to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic with Hand Pump
✓ Reversing Camera
✓ Storage Rack
✓ Twin Tipping Pipes
✓ Toolbox
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Bespoke Colour

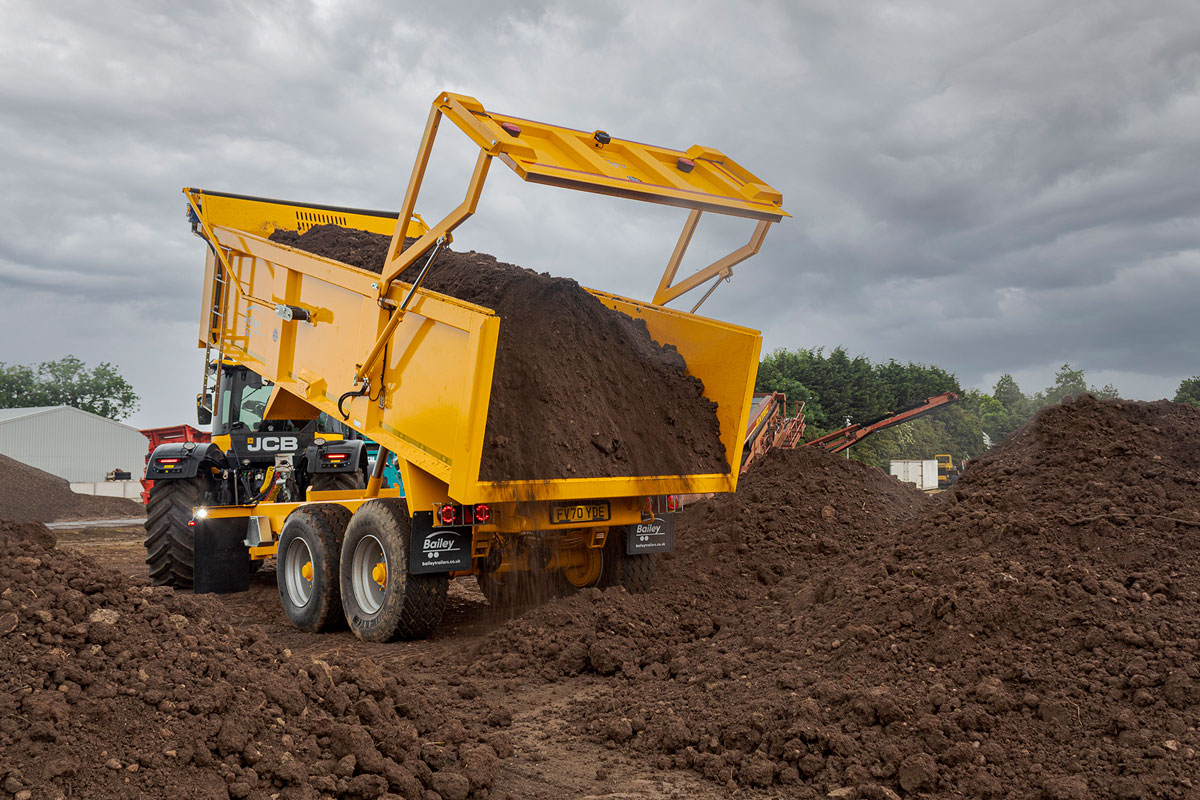

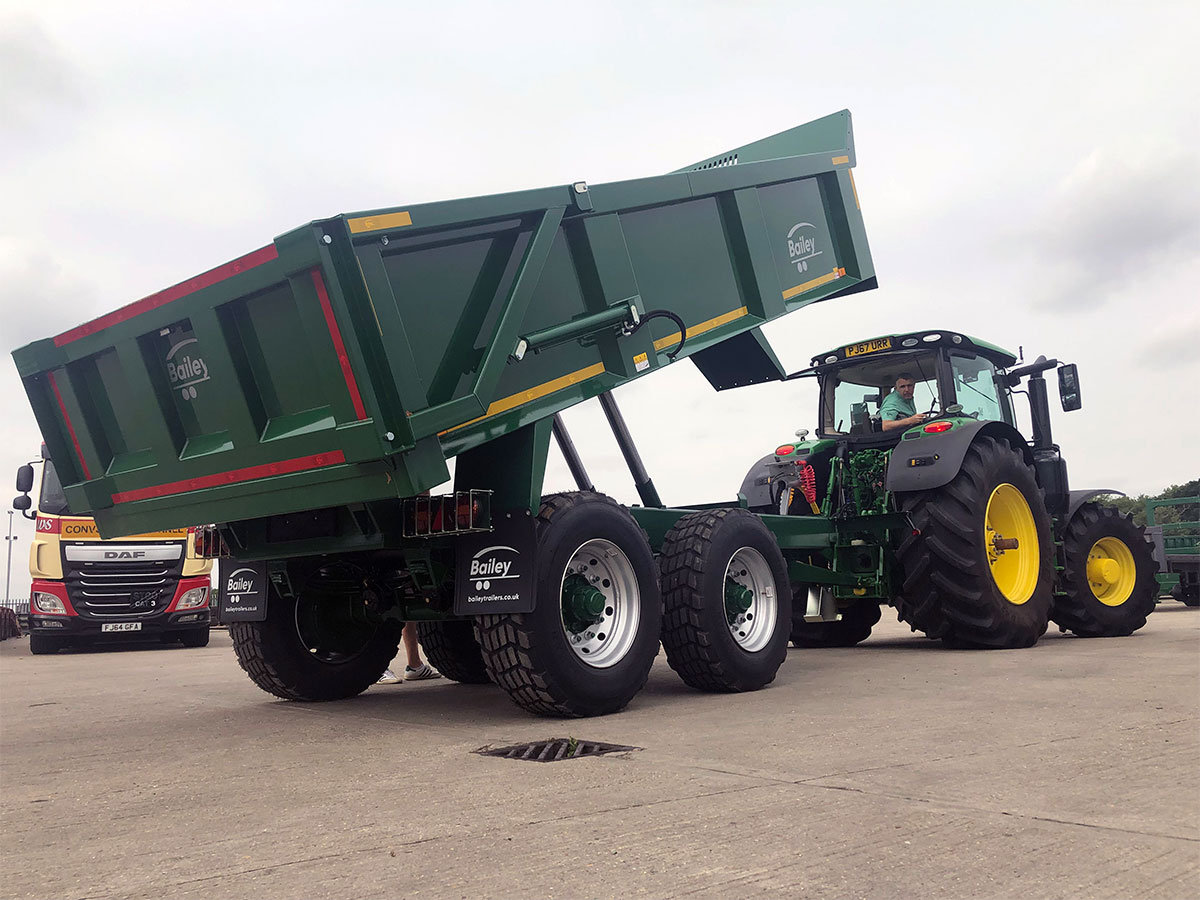

CLICK ON ANY IMAGE TO SEE A LARGER VERSION

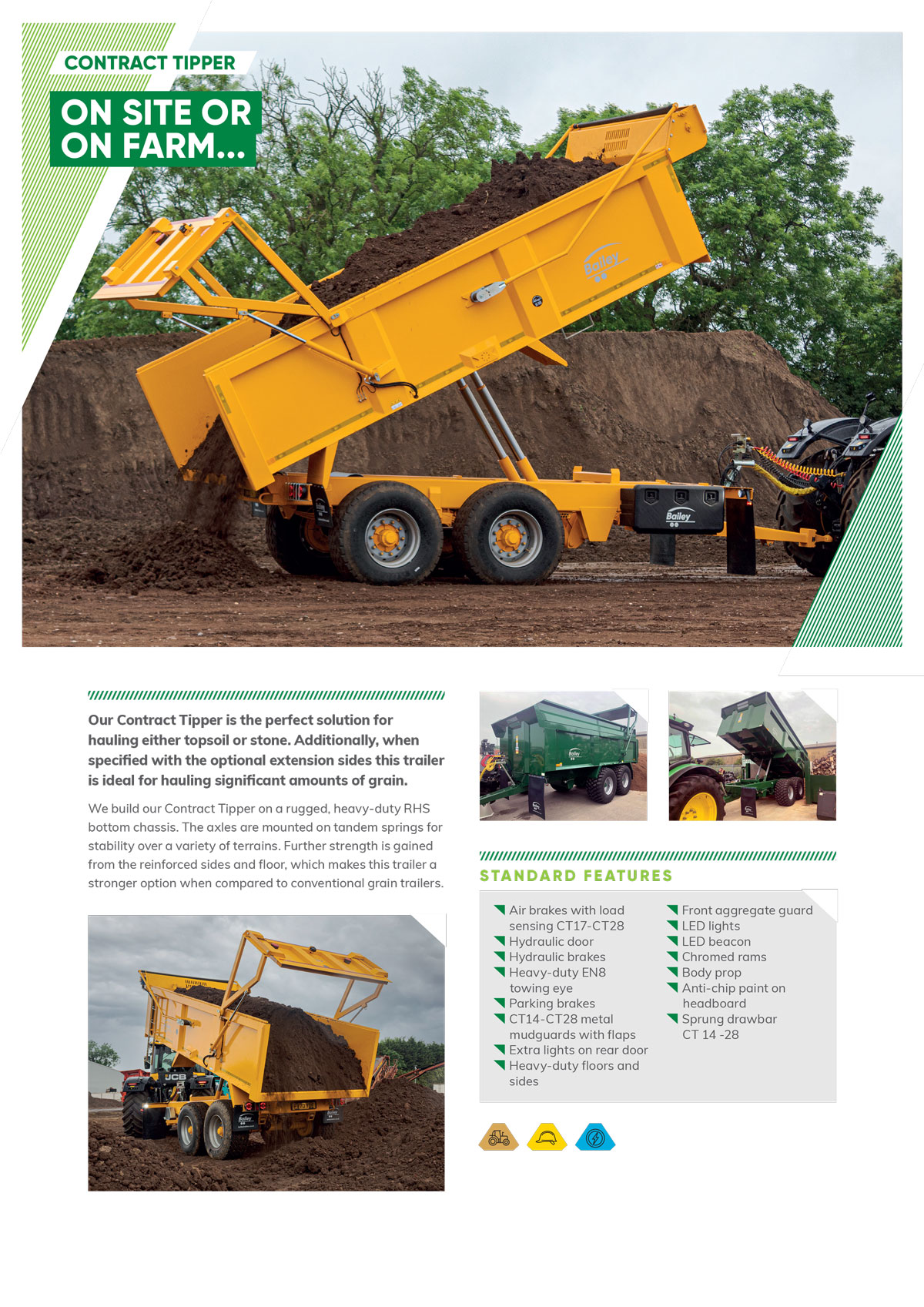

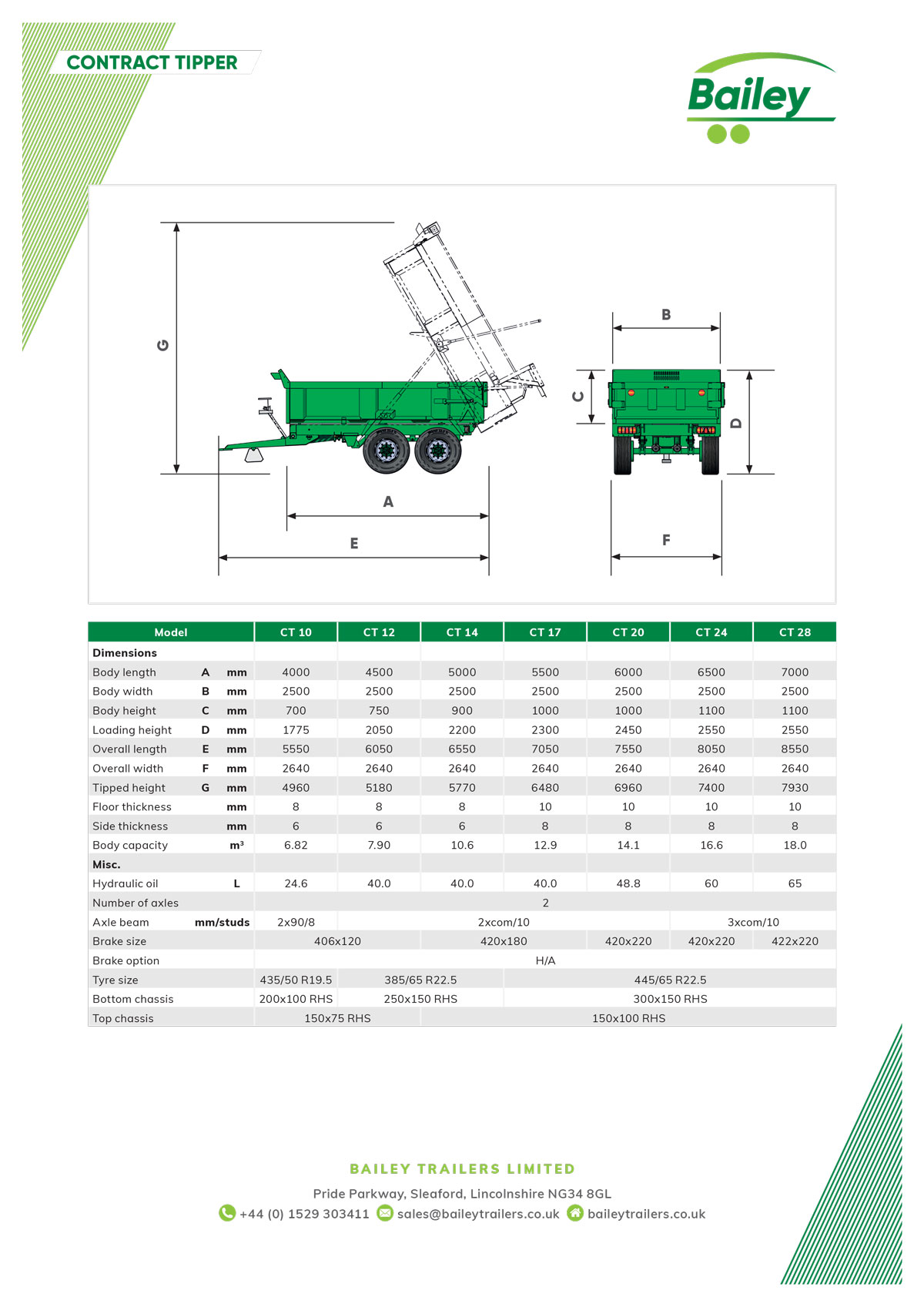

CONTRACT TIPPER SPEC SHEET PDF
Download your Contract Tipper trailer specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
Looking for our main brochure of maintenance manuals? Visit the Operators Hub here ››
