COMPACT AND VERSATILE…
Suitable for a multitude of applications from hill farms and small construction sites, to market gardens and golf courses.
Dropsides are compact, versatile trailers designed for carrying materials such as sand, gravel, green waste and manure.
ENQUIRE NOW
Ready to configure your Dropsides trailer?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ Independent hydraulic brakes
✓ Air brakes and load sensing
✓ Sprung drawbar (DS12 only)
✓ Parking brake
✓ High hinged tail door
✓ Dropsides
✓ LED lights
✓ Chromed rams
✓ LED beacon
✓ Body prop
✓ Anti-chip paint on headboard
SIZES / DIMENSIONS / TYRES
Model |
LxWxH mm |
Tyres |
Axle(s) mm/stud |
Sprung d/bar |
DS 2 |
2500x450x1500 |
24x12x12 |
1x50/5 |
n/a |
DS 4 |
3000x450x2200 |
11.5/80x15.3 |
1x70/6 |
n/a |
DS 6 |
3450x450x2200 |
12.5/80x15.3 |
1x70/6 |
n/a |
DS 8 |
3900x525x2350 |
12.5/80x15.3 |
2x70/6 |
n/a |
DS 9 |
4350x525x2350 |
435/50 19.5 |
2x80/8 |
n/a |
DS 11 |
4800x600x2500 |
385/65 R22.5 |
2x90/8 |
Option |
DS 12 |
5400x600x2500 |
385/65 R22.5 |
2xcom/10 |
STD |
DOORS
✓ Hydraulic Locking Rear Door
LIGHTS
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights and Mudflaps
✓ High Visibility Safety Strips
TOWING EYES
✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye
BALE EXTENSIONS
✓ 900mm or 1200mm (with Rear Lights)
GUARDS, BRAKES AND SUSPENSION
✓ Plastic Mudguards with Flaps (12 tonne only)
✓ Front Rubber Mudflaps
✓ Air Brakes and Load Sensing (12 tonne only)
✓ Auto Slack Adjusters
✓ ABS Brakes with Air Brakes and Load Sensing (12 tonne only)
✓ Hydraulic Brake Load Sensing
✓ Sprung Drawbar (10 tonne only)
MISCELLANEOUS
✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank (Suspension and Axles)
✓ Reversing Camera
✓ Storage Rack
✓ Twin Tipping Pipes (12 tonne only)
✓ Toolbox
✓ Wooden Nudge Bar
✓ Bespoke Colour
CLICK ON ANY IMAGE TO SEE A LARGER VERSION

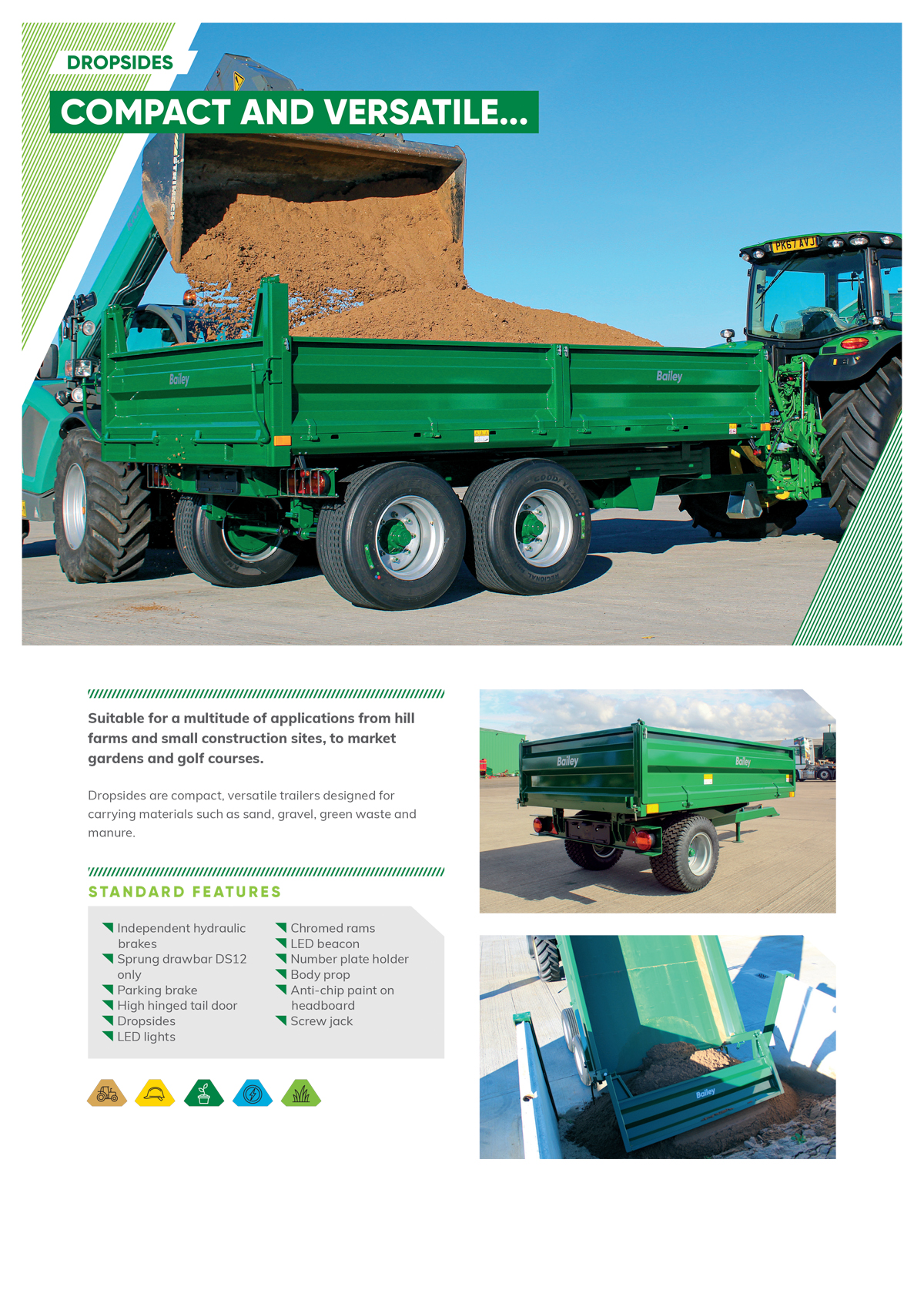

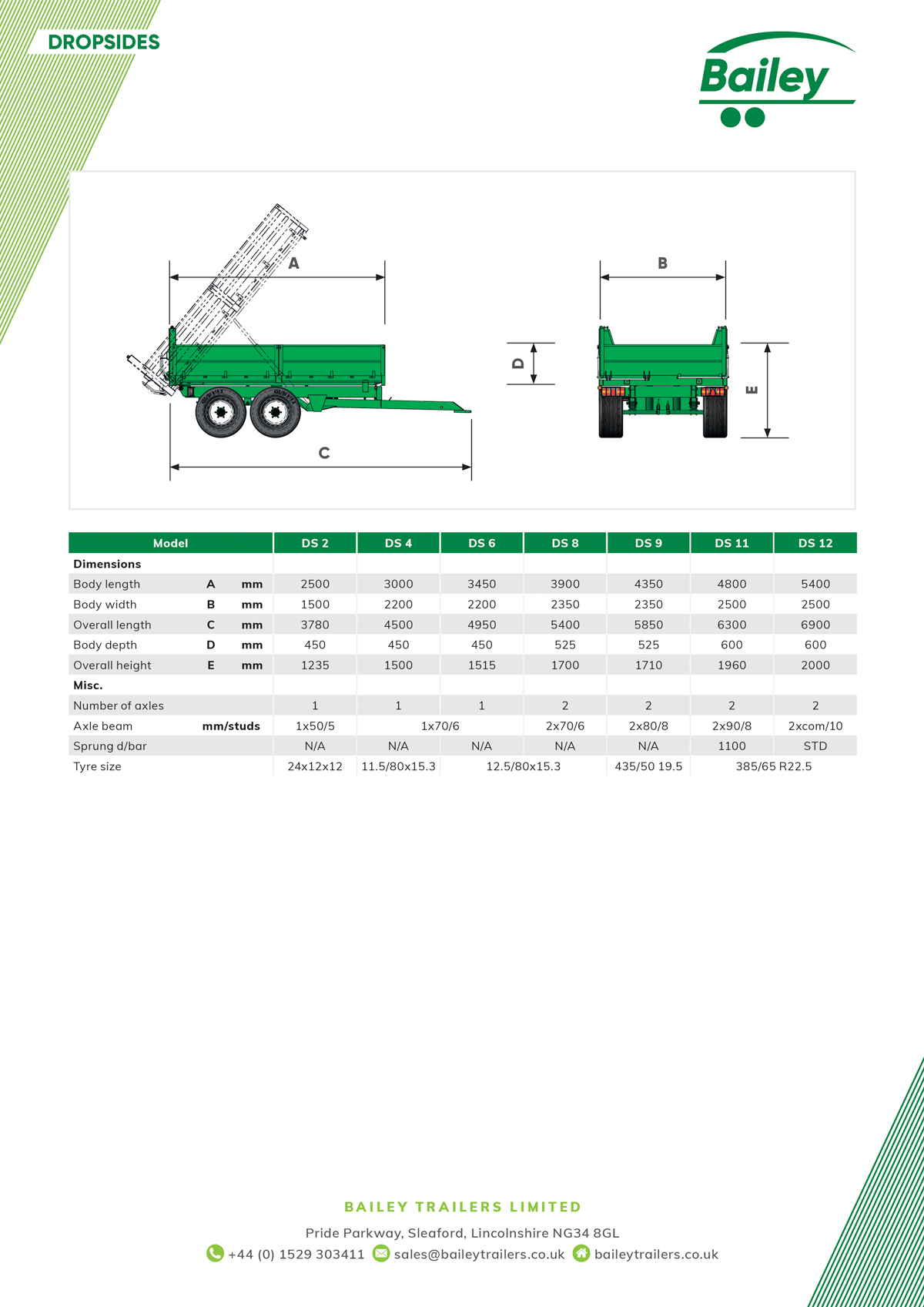

DROPSIDES SPEC SHEET PDF
Download your Dropsides trailer specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
Looking for our main brochure of maintenance manuals? Visit the Operators Hub here ››
Click image to download PDF
Click image to download PDF
