YOUR PORTABLE WATER SUPPLY…
Our range of Water Bowsers features 4 capacity options of 12,000, 15,000, 16,500 and 18,000 litres.
All models feature an elliptical, low centre of gravity translucent fibreglass tank. We specify a true fixed baffle tank, which reduces sloshing and offers greater stability.
Our Water Bowsers are all mounted on a heavy-duty RHS chassis, feature commercial axles and a sprung drawbar with a multi-leaf drawbar spring.
ENQUIRE NOW
Ready to configure your Water Bowser?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ Independent hydraulic brakes
✓ Air brakes and load sensing
✓ Heavy-duty 100 mm wide suspension
✓ Commercial axles
✓ 385/65 R22.5 10 stud remould tyres
✓ Diesel or hydraulic pump
✓ Wheels covered by plastic mudguard
✓ 1000 L/min pump on 3” (75mm) outlets
✓ 2 x extra long 3” hoses with Snaplock couplings and stainless steel storage rack for hoses on both sides
✓ Stainless steel side lockers and rear locker featuring work lights and internal light

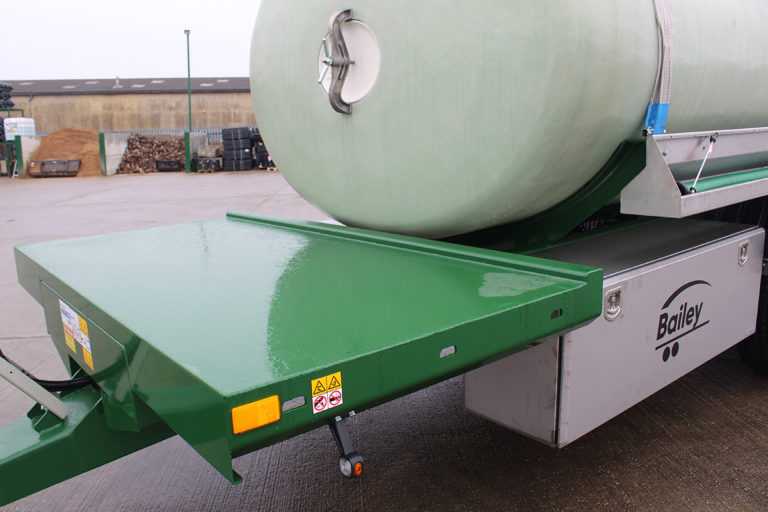

✓ Front platform to carry standard IBC container
✓ Sight gauge
✓ Sprung drawbar
✓ Colour coded pipes
SIZES / DIMENSIONS / TYRES
Model |
Overall length x width x height mm |
Tyres |
Axle(s) mm/stud |
12,000ltr |
8850x2610x2950 |
385/65 R22.5 |
2xcom/10 |
15,000ltr |
9400x2950x2610 |
385/65 R22.5 |
2xcom/10 |
16,500ltr |
9950x2950x2610 |
385/65 R22.5 |
2xcom/10 |
18,000ltr |
10485x2950x2610 |
385/65 R22.5 |
2xcom/10 |
LIGHTS
✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
TOWING EYES
✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye
GUARDS, BRAKES AND SUSPENSION
✓ Metal Mudguards with Flaps
✓ Front Rubber Mudflaps
✓ ABS Brakes
✓ Auto Slack Adjusters
MISCELLANEOUS
✓ Fold Up Trailer Skid (Shoe)
✓ Reversing Camera
✓ Wheel Nut Indicators
✓ Bespoke Colour
CLICK ON ANY IMAGE TO SEE A LARGER VERSION
WATER BOWSER SPEC SHEET PDF
Download your Water Bowser specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
Looking for our main brochure of maintenance manuals? Visit the Operators Hub here ››
Click image to download PDF
Click image to download PDF
