BEETEAPER

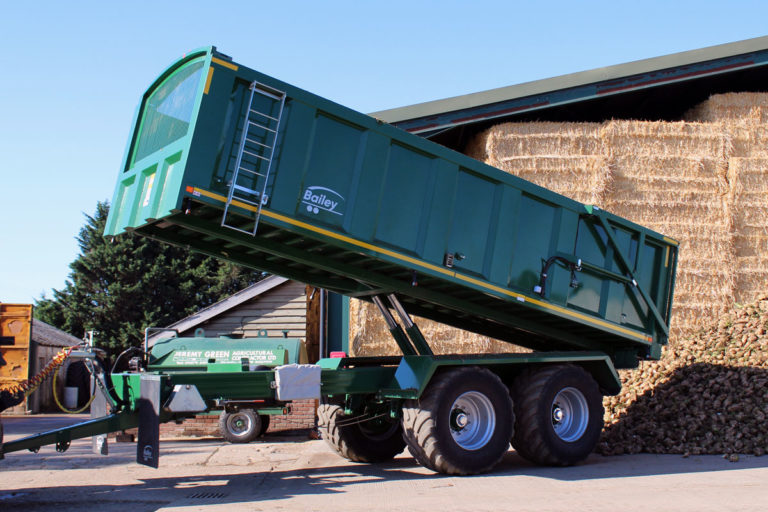

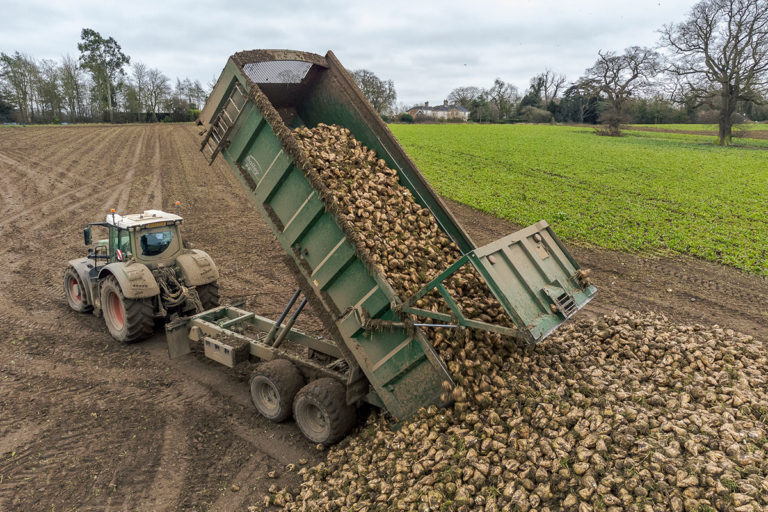

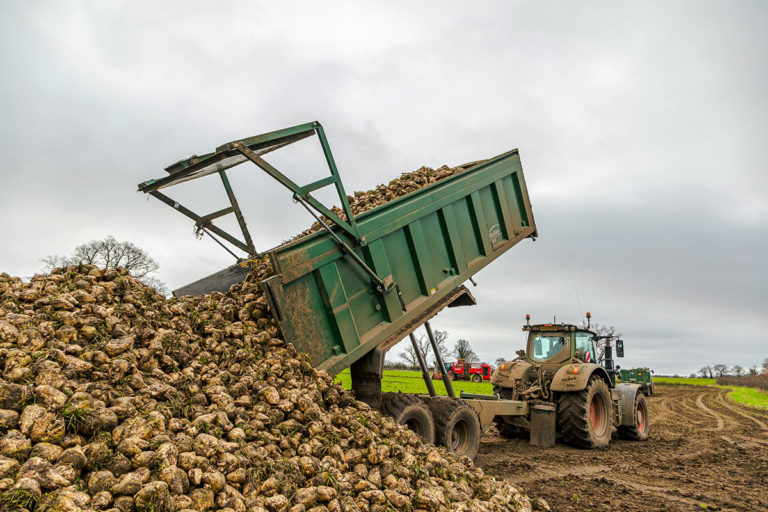

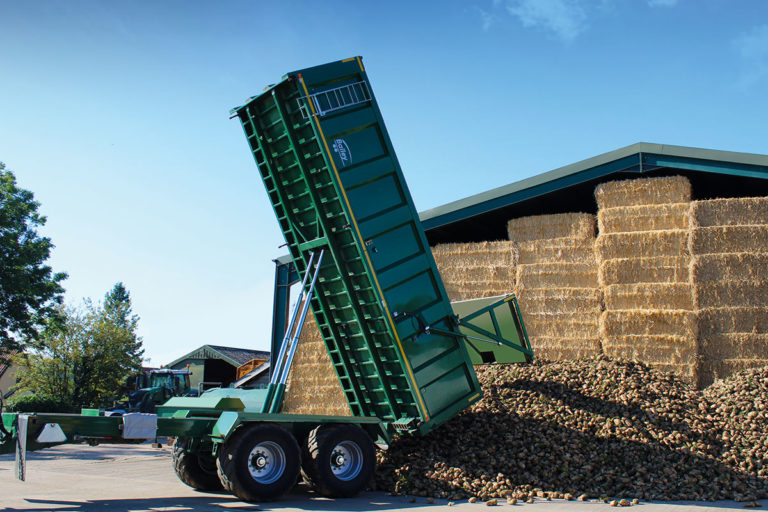

We fit longer side arms and rams, which enables the rear door to open higher when compared to conventional trailers. This extra clearance permits the heaping, scraping and levelling of beet to a height of around 9’.

An RHS chassis of either 8 or 10 mm provides the strength. This clean design eliminates material spillage on road or yard. The hydraulic braking system works in tandem with your tractor, which is important when braking suddenly.

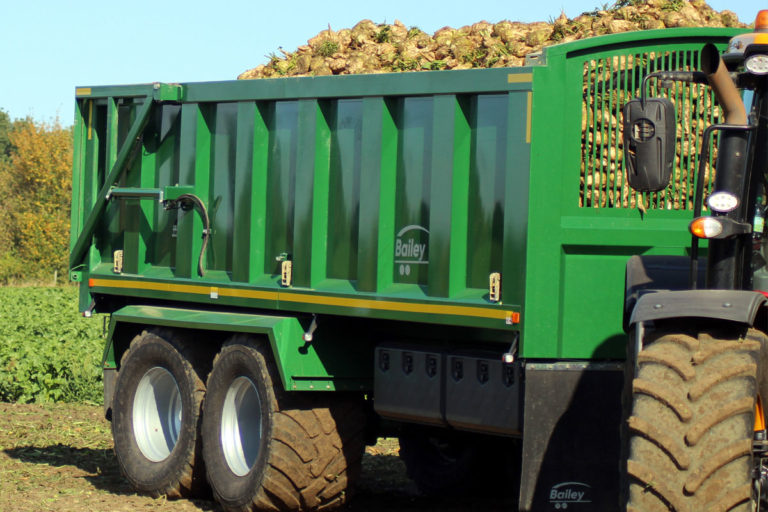

To offset the wear and tear of loading heavy materials, our trailers feature heavy-gauge sides, strengthening channels and heavy-gauge floors with hollow section runners at 300 mm centres. We fit rugged side ladders to aid stability for operators when working above the trailer height.

All Beeteaper’s are fitted with 10 stud heavy-duty commercial axles on tandem springs as standard. Additionally, a sprung drawbar featuring a leaf spring ensures the ride is smooth on all terrains whether partially or fully loaded. Mudguards fitted as standard to protect the trailer against debris and surface spray. All models feature an arched window for improved visibility when loading.

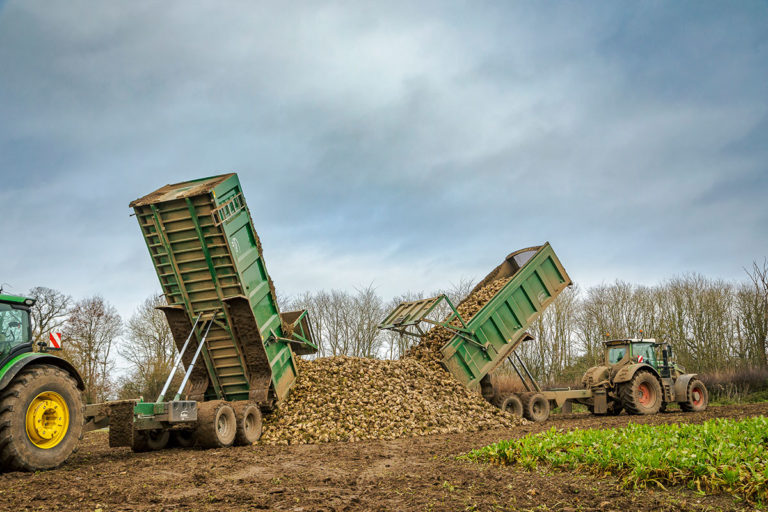

Although our Beeteaper range is designed primarily for beet, it is just as dependable when transporting grain and other crops.

Standard Features

✔ Air brakes with load sensing
✔ Sprung drawbar
✔ Hydraulic rear door
✔ Independent hydraulic brakes
✔ Heavy-duty EN8 towing eye
✔ Parking brakes
✔ Tandem springs
✔ 3 leaf 100 mm wide 32 tonne suspension
✔ Mudguards & flaps
✔ Flotation tyres

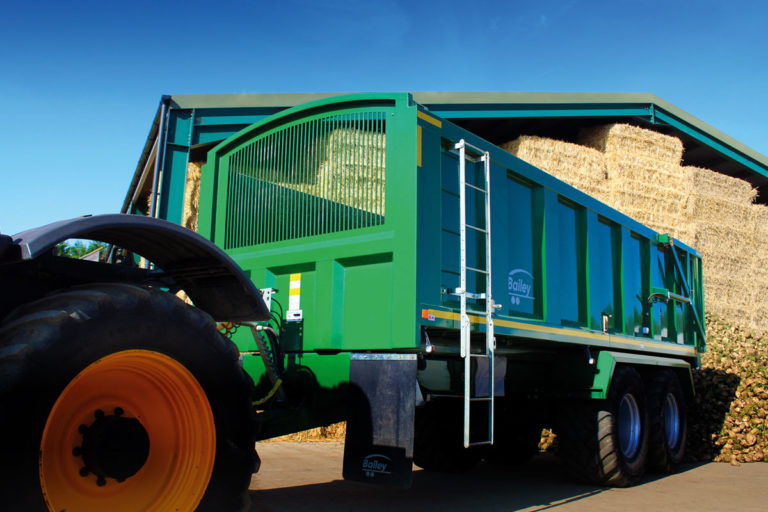

✔ Arched full front window
✔ Extra top lights on tail door
✔ LED lights
✔ LED beacon
✔ Chromed rams
✔ Body prop
✔ Side ladders
✔ Skid & skid carrier

Optional Extras

Windows
✔ Front window
✔ Full front window
✔ Extra high arched (Gypsy Caravan)
✔ Extra deep arched (1000 deep)

Sheeting
✔ Roll over sheet (Easy Sheet)
✔ Hydraulic roll over sheet
✔ Front to back sheeting system (hydraulic)
✔ Fitted weather sheet
✔ Front working platform

Doors
✔ Hydraulic operated doors
✔ Barn doors
✔ Grain chute with handle
✔ Grain sock
✔ Grain handler
✔ Potato chute

Sides & Floors
✔ Extra depth (price per 75mm)
✔ Extension sides
✔ Hydraulic sides (price per side)
✔ Extra thick floor (price per mm)
✔ Extra thick sides (price per mm)
✔ Harder wearing flooring

Lights
✔ Flashing beacon
✔ Flashing beacon with on / off switch
✔ Reversing lights and mud flaps
✔ Internal light
✔ High visibility safety strips

Towing Eyes
✔ Rear towing eye (loops)
✔ Towing swivel eye
✔ Scharmuller Hitch - Swivel
✔ Scharmuller Hitch - (Cup) Ball
✔ Scharmuller Hitch - Hitch Eye

Guards, Brakes, Suspension
✔ Mudguards (plastic with flaps)
✔ Mudguards (metal with flaps)
✔ Steering commercial axle
✔ Front rubber mud flaps
✔ ABS brakes (high speed only)
✔ Auto slack adjusters per axle
✔ Air brake kit
✔ Eurosafe braking system
✔ Hydraulic brake load sensing
✔ Air suspension
✔ Axle upgrade 420 x 180 to 420 x 220

Miscellaneous
✔ Anti-chip paint (headboard)
✔ Autolube
✔ Bespoke colours available on request
✔ Fold up trailer skid (shoe)
✔ Greasing bank - suspension and sides
✔ Greasing bank - hydraulic door
✔ Hinged rear draw bar - hydraulic & air to rear
✔ Jack - screw
✔ Jack - hydraulic
✔ Jack - hydraulic with hand pump
✔ Reversing camera
✔ Signwriting
✔ Storage rack (bolt on)
✔ Twin tipping pipes
✔ Toolbox
✔ Trailer load weighing system (hydraulic)
✔ Electric / hydraulic weighing system
✔ Load cell weigh system
✔ Wooden nudge bar
✔ Wheel nut indicators
✔ Single hydraulic tipping ram
