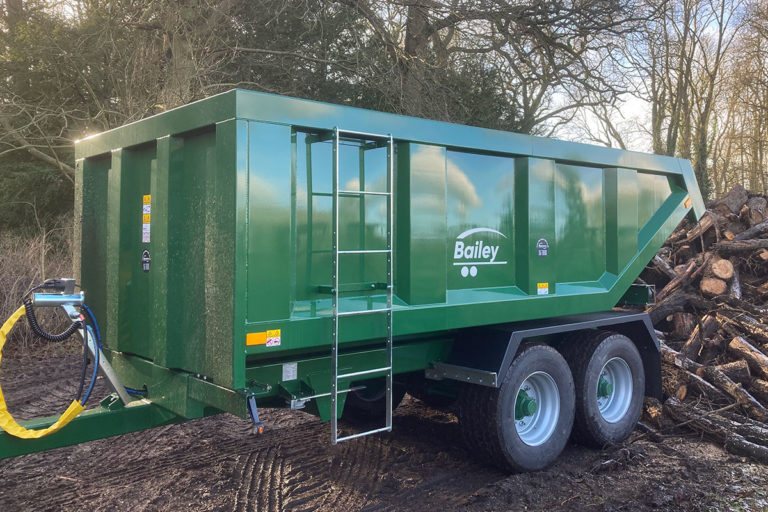

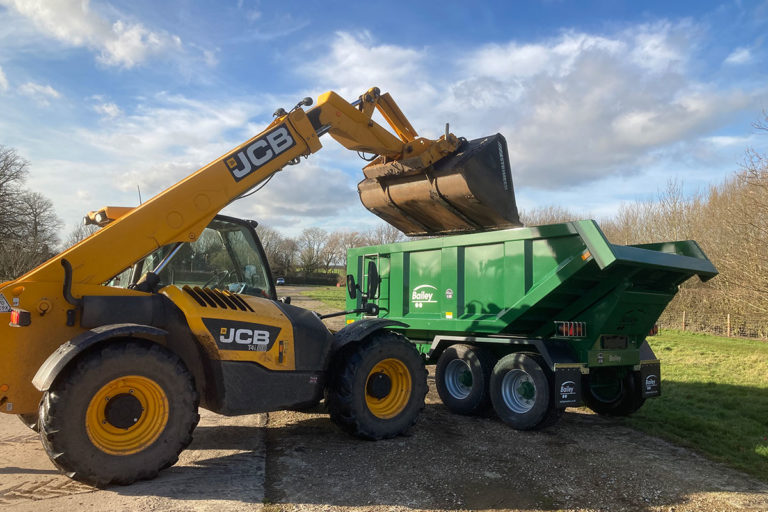

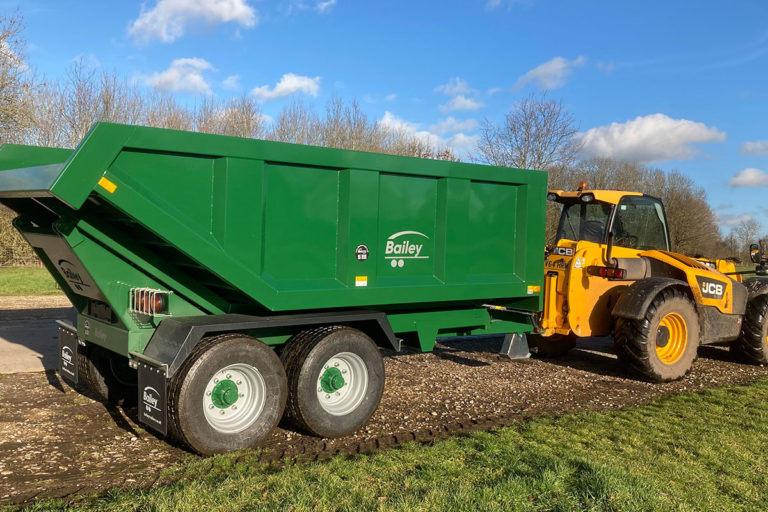

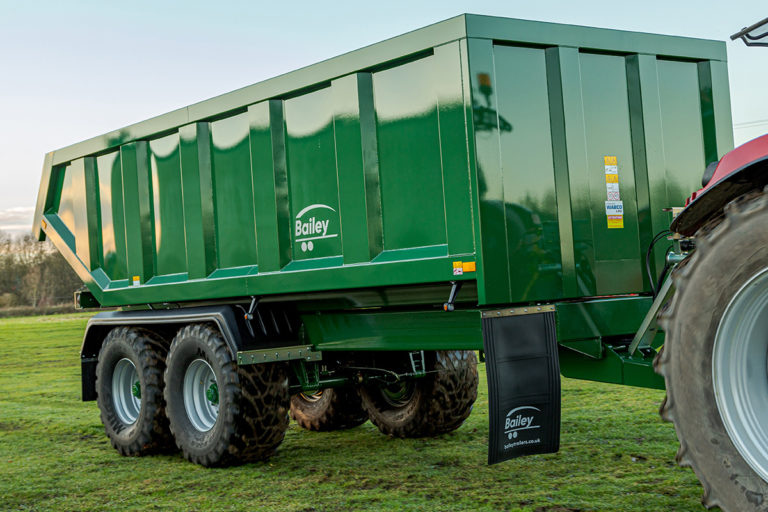

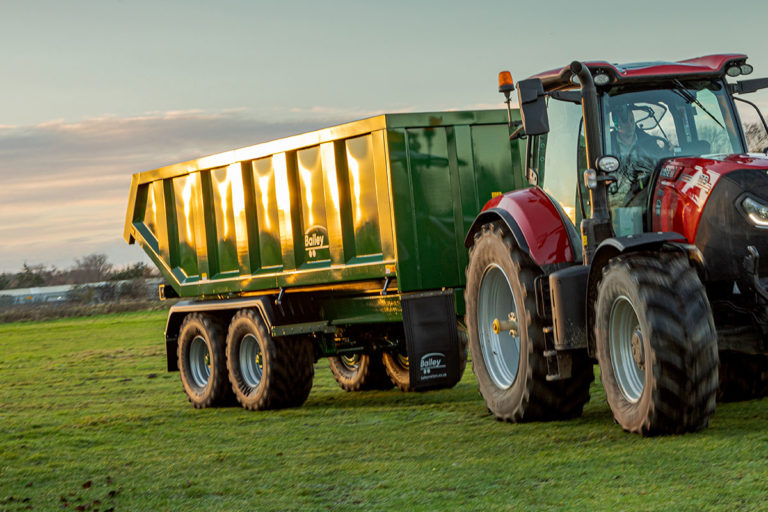

AGRICULTURAL DUMPER

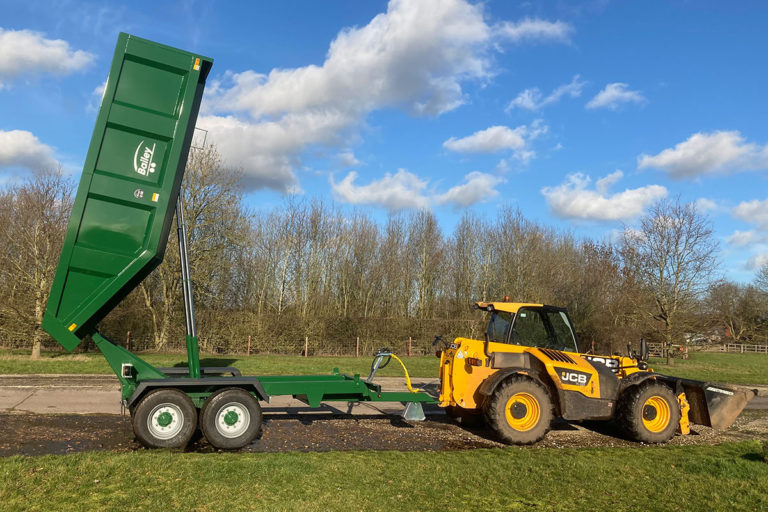

An impressive tipping angle is achieved via twin extra-long reach 3 stage hydraulic cylinders.

To protect against wear and tear Agricultural Dumpers are built with 4mm sides, strengthening channels and heavy-gauge floors with hollow section runners at 300 mm centres. Fitted on a heavy-duty tandem suspension.

Standard Features

✔ Independent hydraulic brakes
✔ Sprung drawbars (on 12, 14 & 16)
✔ Heavy-duty EN8 towing eye
✔ Parking brakes
✔ Mudguards on chassis
✔ Skid & skid carrier
✔ LED lights
✔ LED beacon
✔ Chromed rams
✔ Body prop

Optional Extras

Windows
✔ Front window
✔ Full front window

Sheeting
✔ Front to back sheeting system (hydraulic)
✔ Fitted weather sheet
✔ Front working platform

Doors
✔ Hydraulic operated doors

Sides & Floors
✔ Extra depth (price per 75mm)
✔ Extra thick floor (price per mm)
✔ Extra thick sides (price per mm)
✔ Harder wearing flooring

Lights
✔ Flashing beacon
✔ Flashing beacon with on / off switch
✔ Reversing lights and mud flaps
✔ Internal light
✔ High visibility safety strips

Towing Eyes
✔ Rear towing eye (loops)
✔ Towing swivel eye
✔ Scharmuller Hitch - Swivel
✔ Scharmuller Hitch - (Cup) Ball
✔ Scharmuller Hitch - Hitch Eye

Guards, Brakes, Suspension
✔ Front rubber mud flaps
✔ ABS brakes (high speed only)
✔ Auto slack adjusters per axle
✔ Air brake kit
✔ Eurosafe braking system
✔ Hydraulic brake load sensing
✔ Air suspension
✔ Springs, 3 leaf 76mm to 3 leaf 100mm
✔ Axle upgrade 90/8 stud, 406 x 120 com
✔ Axle upgrade 406 x 120 to 420 x 180
✔ Axle upgrade 420 x 180 to 420 x 220

Miscellaneous
✔ Anti-chip paint (headboard)
✔ Autolube
✔ Bespoke colours available on request
✔ Fold up trailer skid (shoe)
✔ Greasing bank - suspension and sides
✔ Greasing bank - hydraulic door
✔ Hinged rear draw bar - hydraulic & air to rear
✔ Jack - screw
✔ Jack - hydraulic
✔ Jack - hydraulic with hand pump
✔ Reversing camera
✔ Signwriting
✔ Storage rack (bolt on)
✔ Twin tipping pipes
✔ Toolbox
✔ Trailer load weighing system (hydraulic)
✔ Wooden nudge bar
✔ Wheel nut indicators

Agricultural Dumper Range Details
